Generator Sets Model |
AG-50 |
|
Prime Out put (KVA ) |
50KVA |
|
Voltage (V) |
400V |
|
Phase |
3 |
|
Power Factor |
0.8 |
|
Rated Speed/ Frequency |
1500Rpm/50Hz |
|

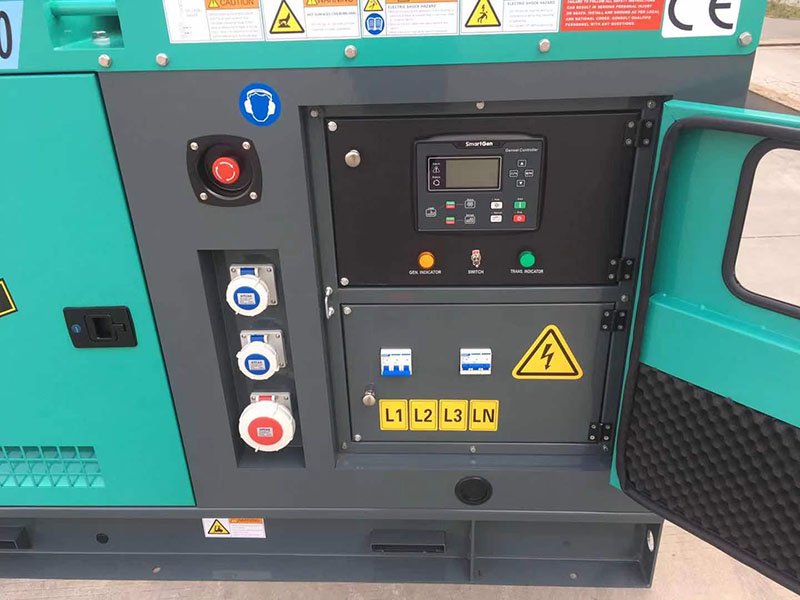

Control System |
Smartgen 6120N |
|
Storage Battery |
With |
|
Fuel Tank (H) |
8 |
|
Demision mm |
2250*950*1150 |
|
Technical of Engine |
|
|
Engine Model |
Ashita ZH4100D-30.1KW |
|
Engine Character |
Four-stroke,Water-cooled,In-line,Direct injection |
|
Rated Output（KW） |
30.1KW |
|
Compression ratio |
19:1 |
|
Cylinder No. |
4 |
|
Bore（mm）×Stroke（mm） |
100*115 mm |
|
Fuel Consumption（g/kw.h） |
≤258 |
|
Displacement（L） |
3.61 |
|
Start Model |
Electrical |
|
Speed Governor |
Mechanical |
|
Technical of Alternator |
|
|
Alternator |
Ashita STC-24KW |
|
Excitation |
Brushless |
|
Rated Output（KW） |
24 |
|
Insulation Class |
H |
|
Protection Class |
IP21 |
|
Efficiency |
92.80% |
|
Voltage Adjust Range |
≥±10% |
|
Steady State Voltage Regulation |
≤±1% |
